Mainusesandcharacteristics:

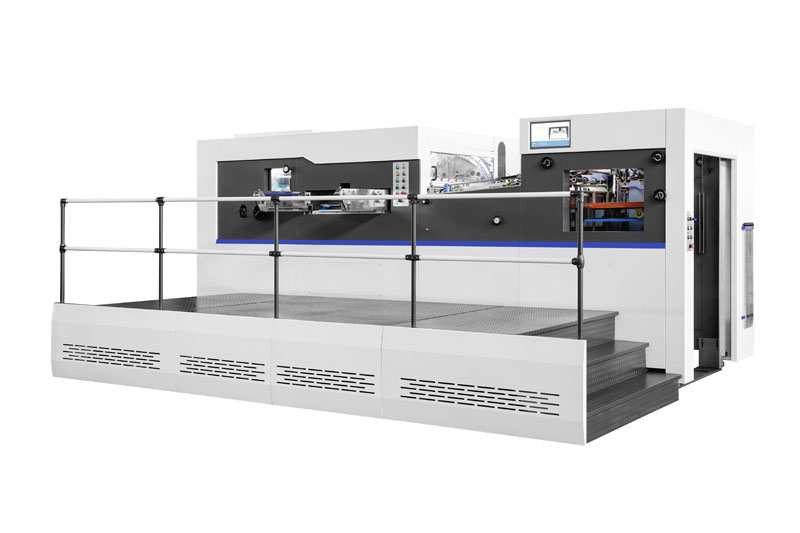

Automatic / waste cleaning / eager / hot / stamping / leveling die cutting machine is the main equipment for packaging die cutting, die cutting, indentation and cold pressure concave and convex in the packaging industry. The machine adopts the modern advanced level of pneumatic clutch, pneumatic lock plate and other structures, and realizes the paper, die-cutting, paper collection, counting, man-machine interface, detection and other automatic functions. Do not stop the continuous production, improve the production efficiency. It is characterized by convenient operation, safety and reliability, high efficiency, high pressure, high precision and good quality.
Main technical parameters:

Model	800A	105A	105B	105AQF
Maximum paper strip size	800x600mm	1050x750mm	1050x750mm	1050x750mm
Minimum paper conveying size	310x260mm	400x360mm	400x360mm	400x360mm
Maximum die cut size	780x580mm	1040x720mm	1040x720mm	1040x720mm
maximum working pressure	200T	300T	600T	600T
Maximum running speed	8000s/h	7500s/h	7500s/h	7500s/h
Die-cutting sheet thickness	80-1000g/m² Corrugated paper≤4mm	80-2000g/m² Corrugated paper≤4mm	80-2000g/m² Corrugated paper≤4mm	80-2000g/m² Corrugated paper≤4mm
full-load power	16.9kw	17kw	21kw	18kw
The weight of the machine	13T	17T	19T	18.5T
outline dimension /mm	6100x3680x2180	6708x4250x2352	6708x4250x2352	7120x4265x2355

Model	105BQF	105AR	105BTY	105ATY
Maximum paper strip size	1050x750mm	1050x750mm	1050x750mm	1050x750mm
Minimum paper conveying size	400x360mm	400x360mm	400x360mm	400x360mm
Maximum die cut size	1040x720mm	1040x720mm	1040x720mm	1040x720mm
maximum working pressure	300T	600T	300T	600T
Maximum running speed	7500s/h	7500s/h	7500s/h	7500s/h
Die -cutting sheet thickness	80-2000g/m² Corrugated paper≤4mm	80-2000g/m² Corrugated paper≤4mm	80-2000g/m² Paper jam0.1-2mm	80-2000g/m² Paper jam0.1-2mm
full-load power	18kw	35kw	56kw	56kw
The weight of the machine	18.5T	18.5T	17T	19T
outline dimension /mm	7120x4265x2355	7120x4265x2355	5930x3800x2200	5930x3800x2200

Model	106B	106AR	106BQF	106ATY
Maximum paper strip size	1070x790	1070x790	1070x790	1070x790
Minimum paper conveying size	400x380	400x380	400x380	400x380
Maximum die cut size	1060x780	1060x780	1060x780	1060x780
maximum working pressure	300T	600T	300T	600T
Maximum running speed	7500s/h	7500s/h	7500s/h	7500s/h
Die-cutting sheet thickness	80-1000g/m² Corrugated paper≤4mm	80-2000g/m² Corrugated paper≤4mm	80-2000g/m² Corrugated paper≤4mm	80-2000g/m² Paper jam0.1-2mm
full-load power	17kw	35kw	21kw	56kw
The weight of the machine	15T	17T	22T	24T
outline dimension /mm	5600x4100x2300	5600x4100x2300	8010x4100x2300	7195x4500x2750

Model	106BTY	1300B	1300TY
Maximum paper strip size	1070x790	1320x960mm	1320x960mm
Minimum paper conveying size	400x380	550x450mm	550x450mm
Maximum die cut size	1060x780	1300x950	1300x950
maximum working pressure	300T	350T	350T
Maximum running speed	7500s/h	5500s/h	5500s/h
Die-cutting sheet thickness	80-2000g/m² Paper jam0.1-2mm	Corrugated paperABCDE ≤8mm	80-2000g/m² Paper jam0.1-2mm
full-load power	56kw	21KW	56KW
The weight of the machine	20T	20T	22T
outline dimension /mm	7195x4500x2750	7252x5200x2500	8250x5200x2750
