Film blowing machine

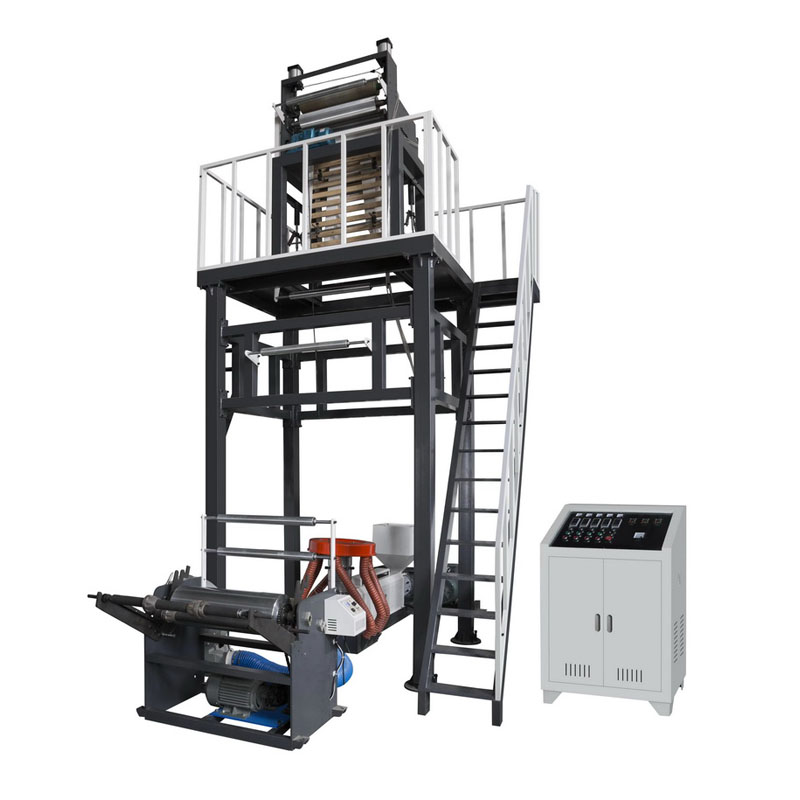

Home-Product-Film blowing machine-1100 single screw film blowing machine
Home-Product-Film blowing machine-1100 single screw film blowing machine
Product description
| Model number | 1100 |
| Applicable raw materials | HDPE, LDPE,LLDPE |
| Product width | 400-1000mm |
| Product thickness | 0.005-0.10mm |
| Production volume | 80-90kg/h |
| Squeezing part | 90-100kg/h |
| Screw diameter (mm) | Φ55mm |
| Screw length to diameter ratio | 30:1/32:1 |
| Screw material | Double alloy material |
| Material of material cylinder | Double alloy material |
| Power of cooling fan for material cylinder | 550w*4 |
| Host power (kw) | 18.5kw |
| Material barrel temperature control | Zone 2 * 2 |
| Average power consumption | 45kw |
| Mold head section | 100mm |
| Mold mouth | 250mm |
| Temperature control | District 12 |
| Wind ring | Dual air outlet wind ring |
| Fan | 4kw |
| Upper traction section | |
| Pulling roller width | 1100mm |
| Effective traction film width | 1000mm |
| Traction speed | 10-120m/min |
| Traction motor power | 3.7kw |
| Roll up section | |
| Roll up method | Friction type double winding |
| Roll up speed | 10-120m/min |
| Power supply | 380V,50HZ,3PHASE |
| Whole machine weight | 4T |
| Dimensions (length * width * height) | 6*4*6.2m |
