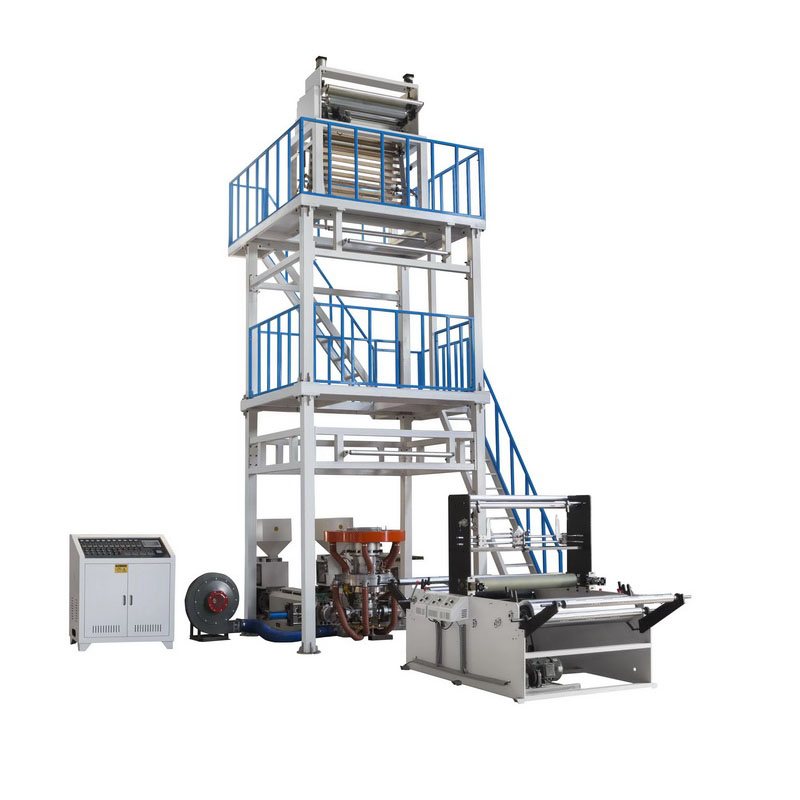

Home-Product-Film blowing machine-1300 Twin Screw ABA Blowing Film Machine
Home-Product-Film blowing machine-1300 Twin Screw ABA Blowing Film Machine
Product description
| Specification and model | ABA1300 |
| Applicable raw materials | HDPE/LDPE/LLDPE |
| Product width | 800-1200mm |
| Product thickness | 0.015-0.08mm |
| Maximum extrusion capacity | 130kg/hr |
| Extruder | |
| Screw diameter | φ60×2mm |
| Screw length to diameter ratio | 30:1 32:1 |
| Screw material | SACM-645/38 CRMOALA |
| Material of material cylinder | SACM-645/38 CRMOALA |
| Material cylinder cooling | 180w×2-2 |
| Host power | 22KW×2 |
| Material barrel temperature control | Zone 3 |
| Average power consumption | 45kw |
| Mold head | |
| Mold mouth | φ80mm |
| rotate | 360° |
| temperature control | Zone 2 |
| Dual air outlet wind ring | φ1000mm |
| Fan | 7.5kw |
| Extraction device | |
| Pulling roller width | φ160×1300mm |
| Effective extraction of membrane width | 1200mm |
| Up and down lifting type | 700mm |
| Traction speed | 10-100m/min |
| Extract motor power | 1.1kw |
| Roll up device | |
| Roll up power | 16N.m |
| Roll up speed | 10-100m/min |
| External dimensions | 7.0×2.3×6.8m |
